Data specifications

Power Tube 833
Tube complement ECC88 or KT120KT150 as the drivers, KT88 as the amplifiers . 833
Frequence response 20Hz-100KHz
Input Impedance 100k ohms
Input  sensitivity

  1.0Vrms

S / N

       > 98dB

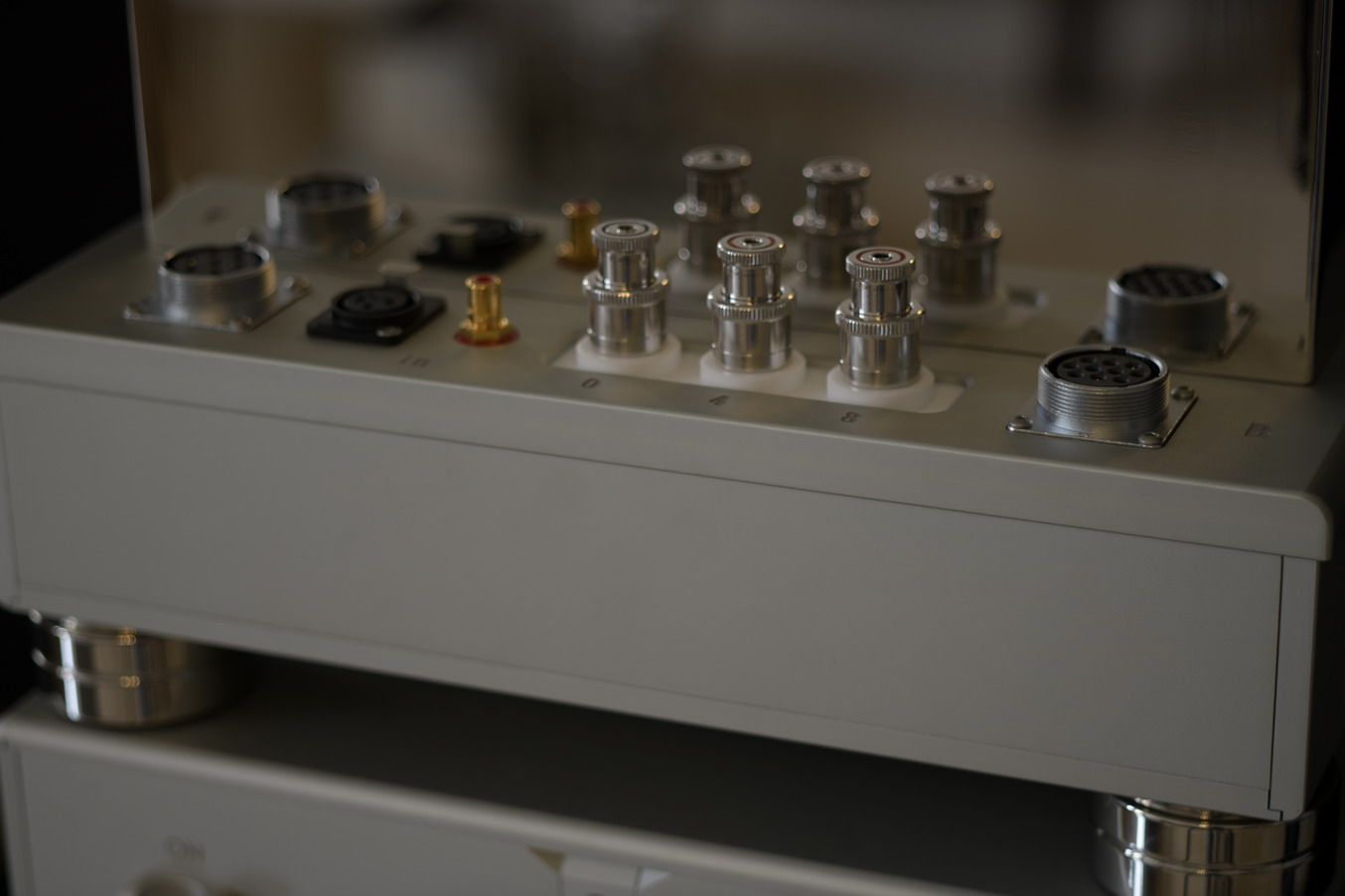

Input selections      RCA single-ended ;  balanced / XLR
Power Output     130w
Load impedance    4 & 8 ohms
Power consumption

  400W(each)

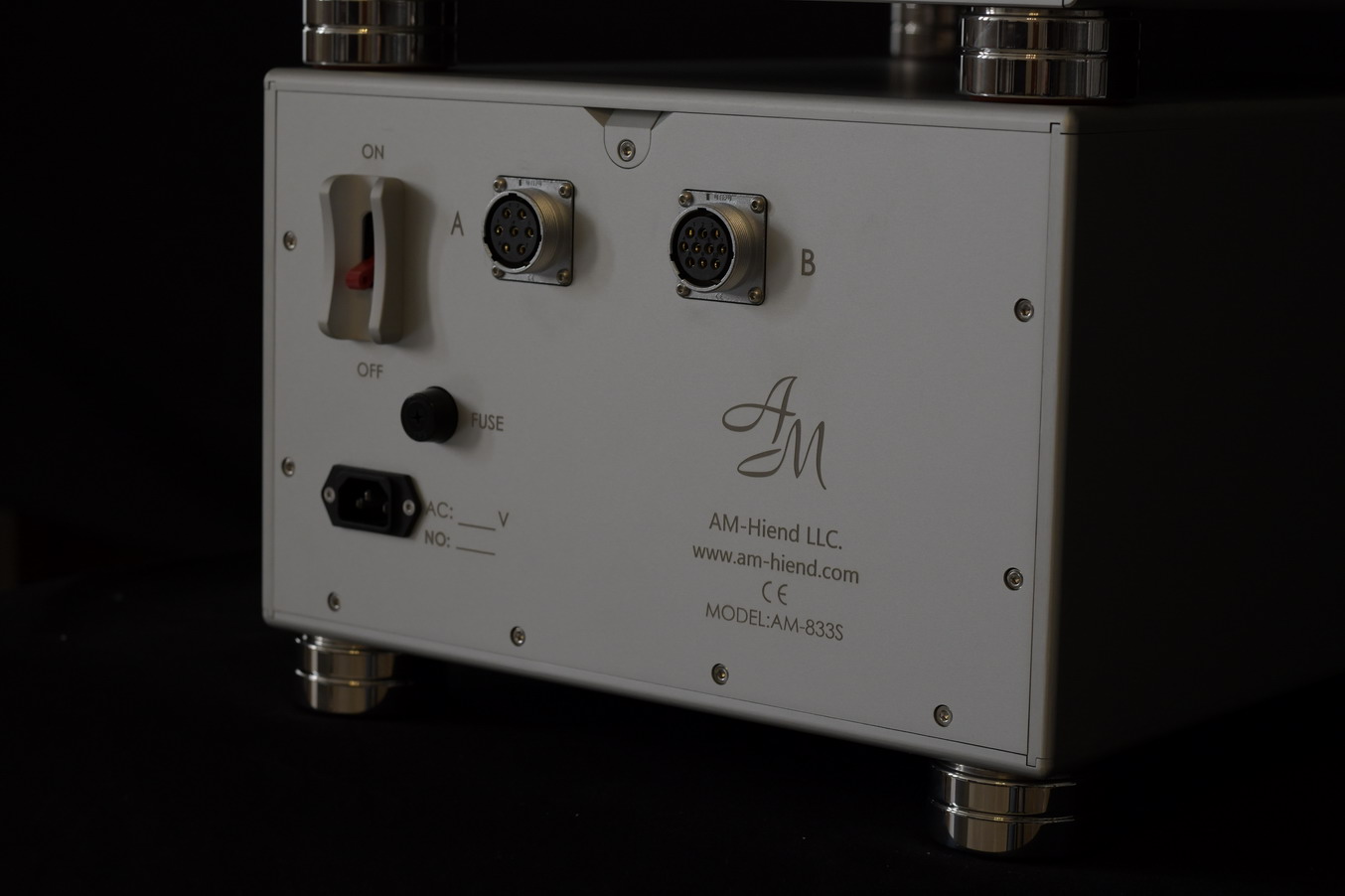

Power supply

100,110,120,220,230,240 VAC 50-60Hz

Dimensions (W * D * H) amplifier 354 X 480 X 300   (mm)------- power supply354 X 480 X 240  (mm)
Weight amplifier 42kg x2 . power supply52kgx2...

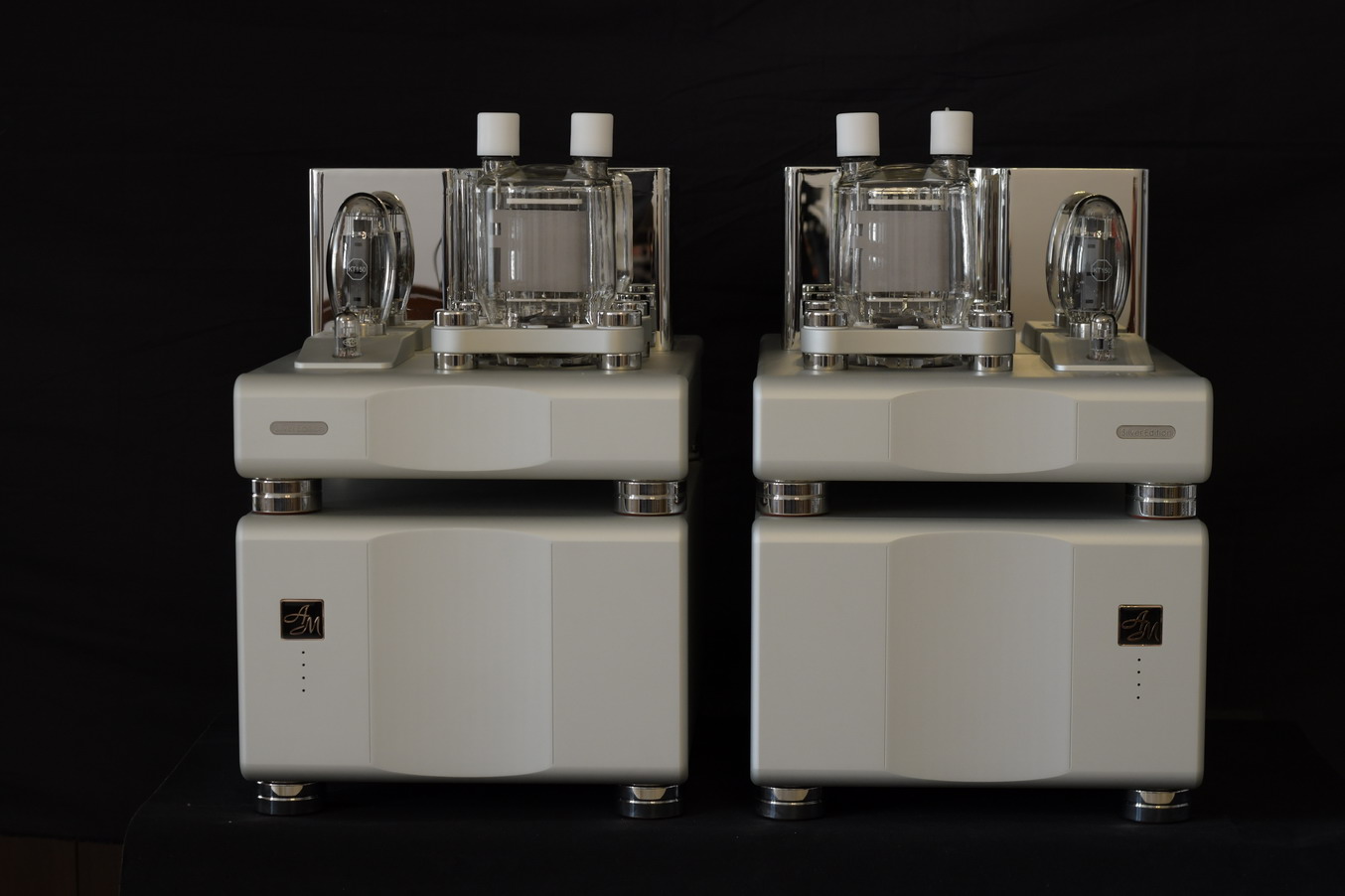

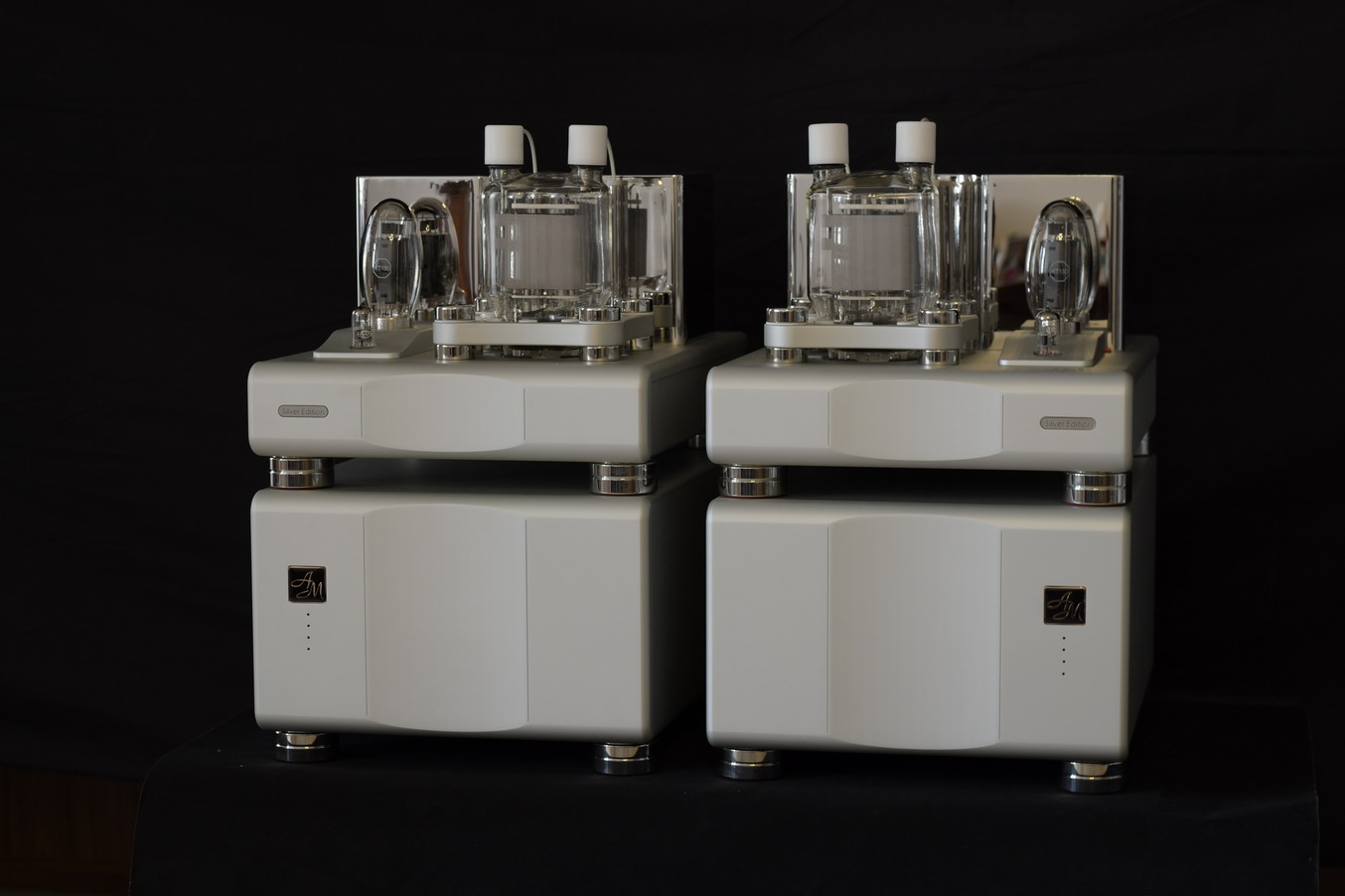

The AM 833SMK2 is an absolute state-of-the-art, no compromise design to celebrate our 10th Anniversary.

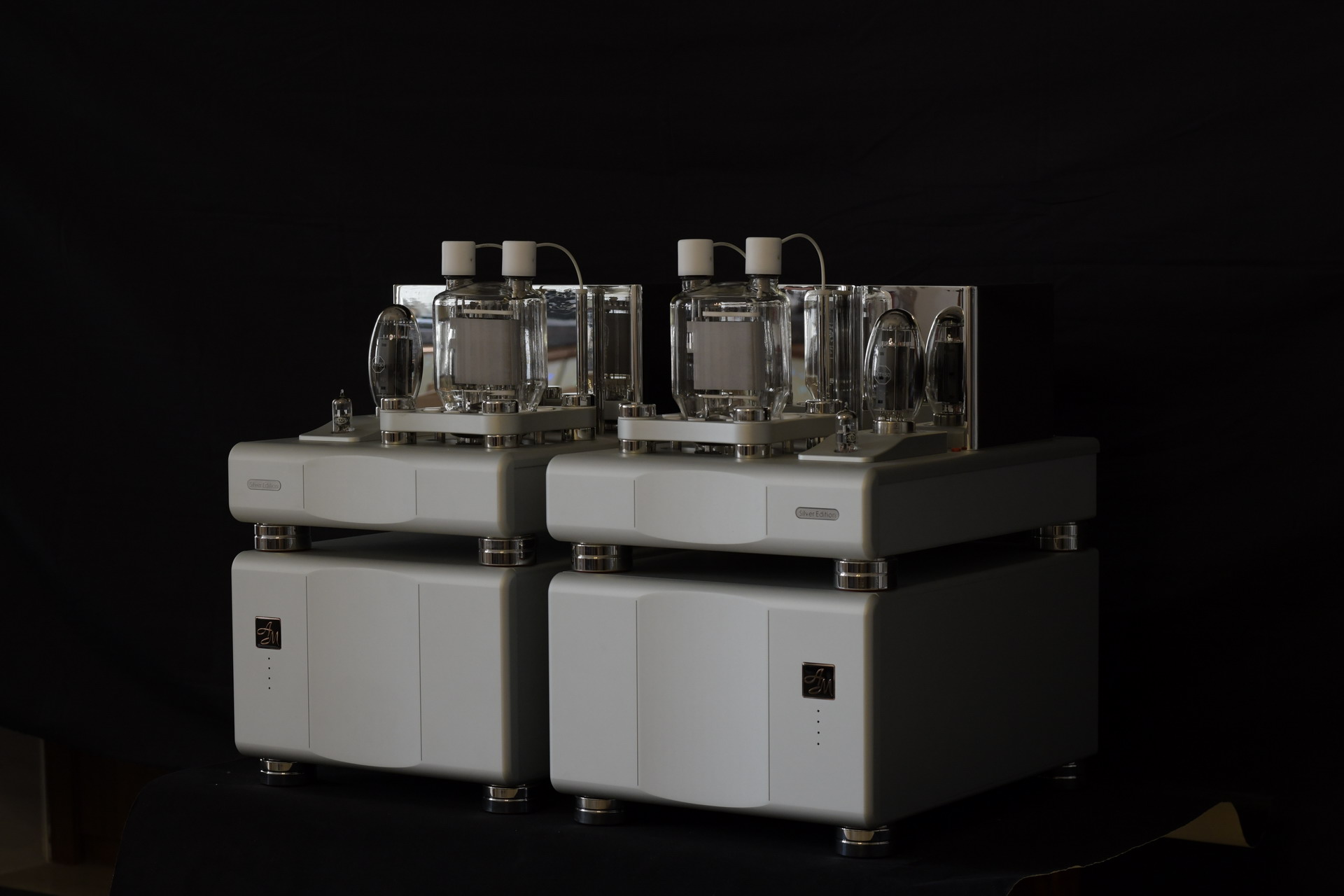

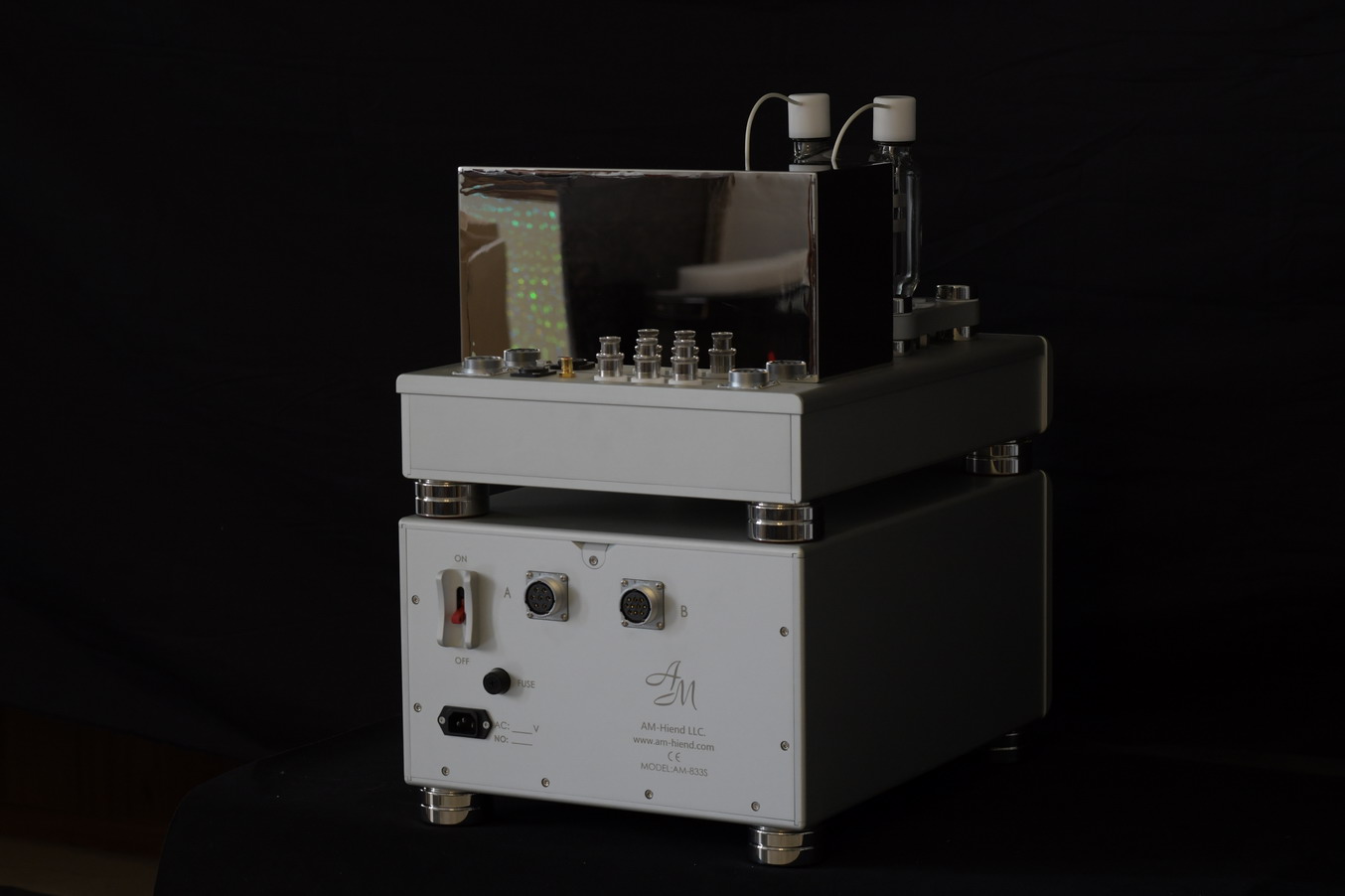

Both the amplifier and the power supply sections are isolated to reduce magnetic field interference from the two massive double C HIB power transformers, thus ensuring that pure power is supplied to the amplifier.
The signal circuit is direct coupled and transformer coupled, eliminating capacitors from the signal path to avoid any compression of the dynamic range.
The multiple independent power supplies use an effective -shaped filter circuit for exceptional noise isolation.
All the tube heaters use silicone-diode rectification. The -shaped filter choke transformers are DC coupled to a large volume condenser to minimise hum.
Both the driver and output transformers use a very complicated winding technique and are constructed of special magnetic materials so that a bandwidth of 10Hz- 120KHz. is achieved.

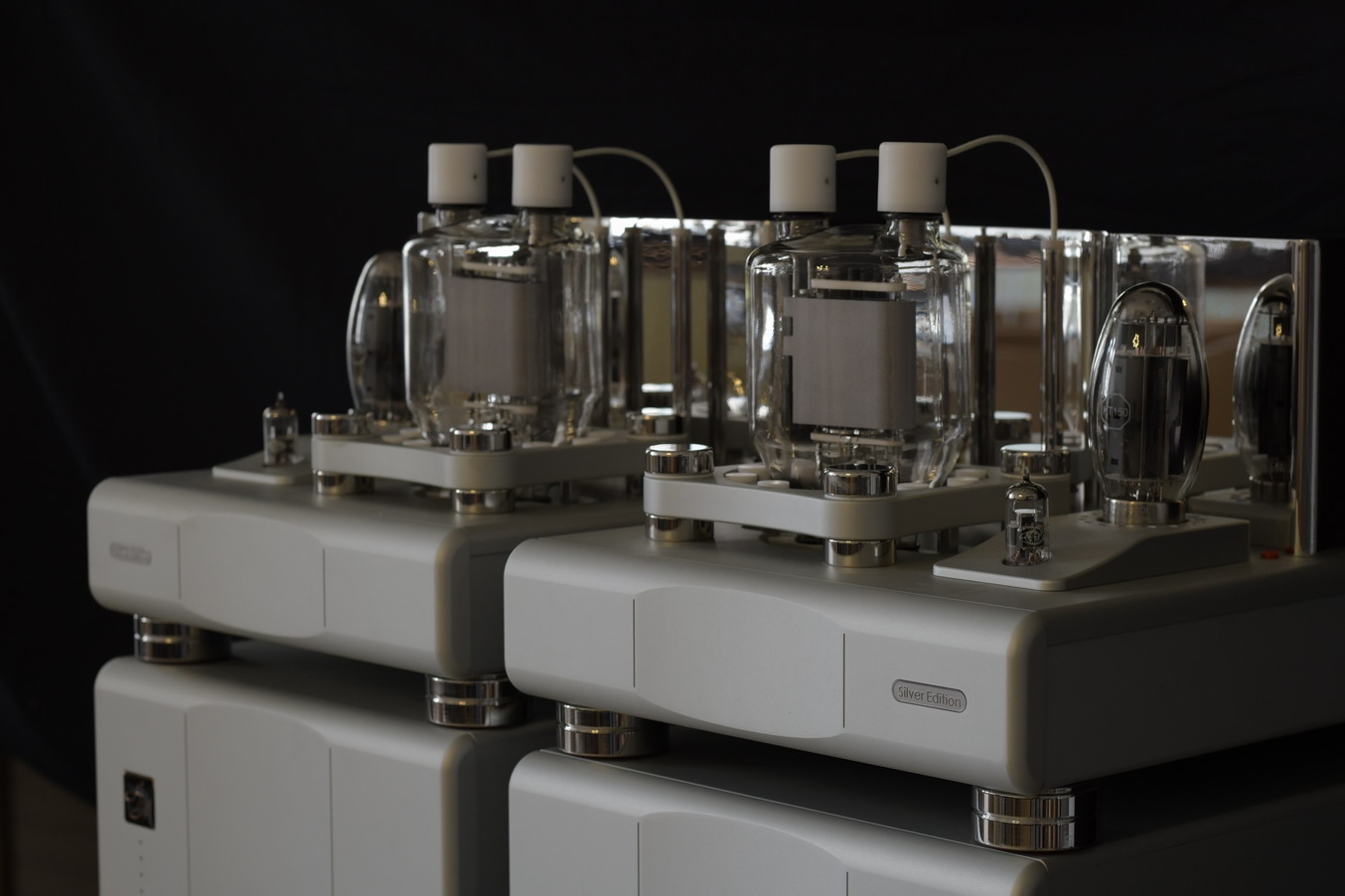

The 833 tube sockets are machined from Teflon, and use gold plated phosphorous bronze round pins for exceptional contact and improved sound quality.
The internal wiringis rectangular silver connectionwire,carefully chosen duringextensive listening tests.
The chassis is constructed of a very thick aluminium alloy, machined by precision CNC machinery to ensure itsextreme strength, stability, reliability and resonant control properties.
It is this attention to detail and lack of compromises that result in an exceptionally musical and stunningly clear sound reproduction, which brings the listener closer to the music and the music closer to the listener.
