Data specifications

Supported Formats

44.1kHz to 768kHz PCM up to 32 bits

2xDSD, 4xDSD, 8xDSD

Supports DSD via DoP on all inputs
Display

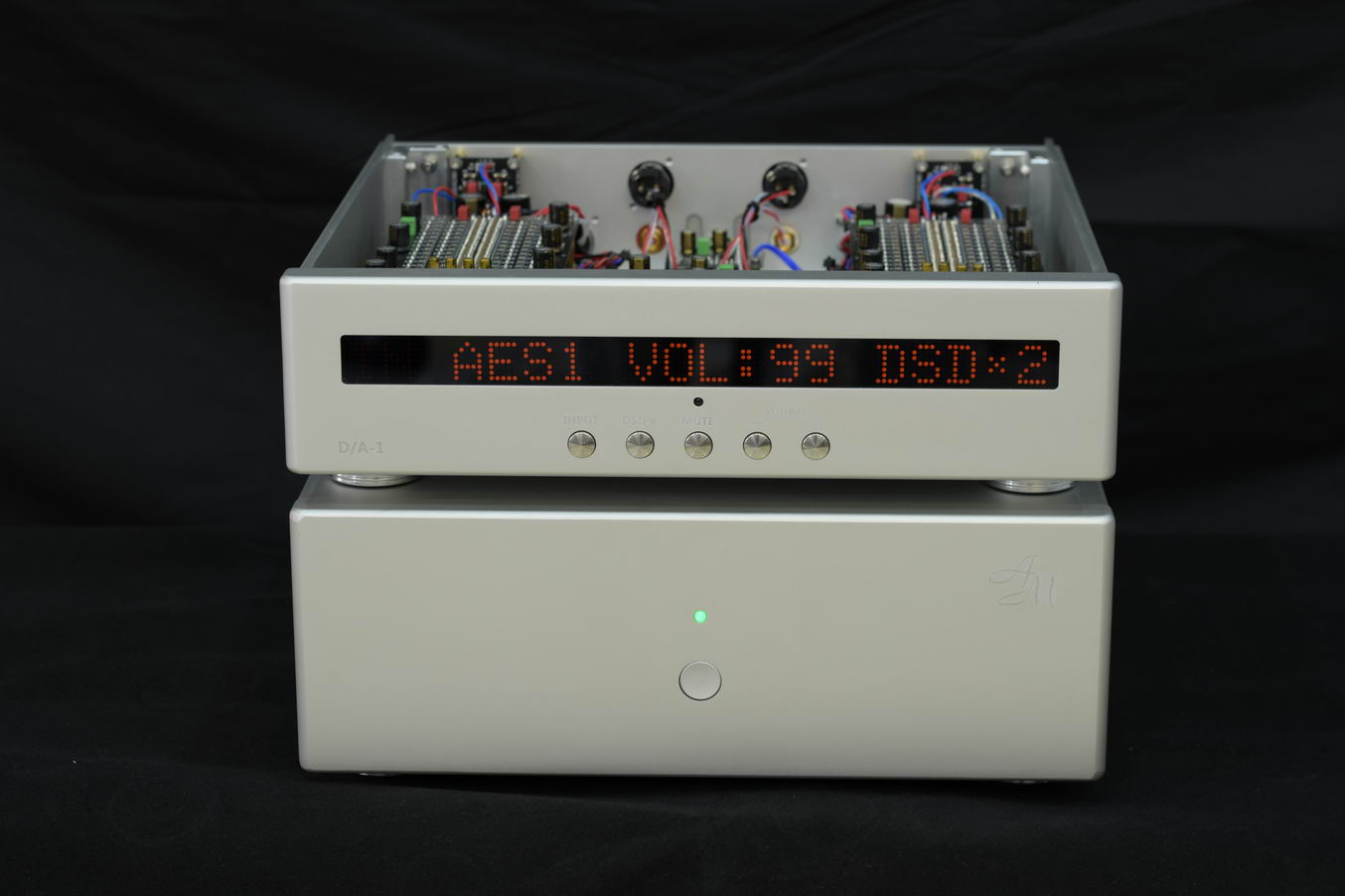

Custom discrete LED audio clock synchronous

Adjustable brightness and auto-of feature
Volume control DSP 99  volume control
Output Impedance

600 ohms . RCA output & BAL output. 3.57Vrms Max

Digital Inputs   2 Coaxial ; 2 AES , 1 USB

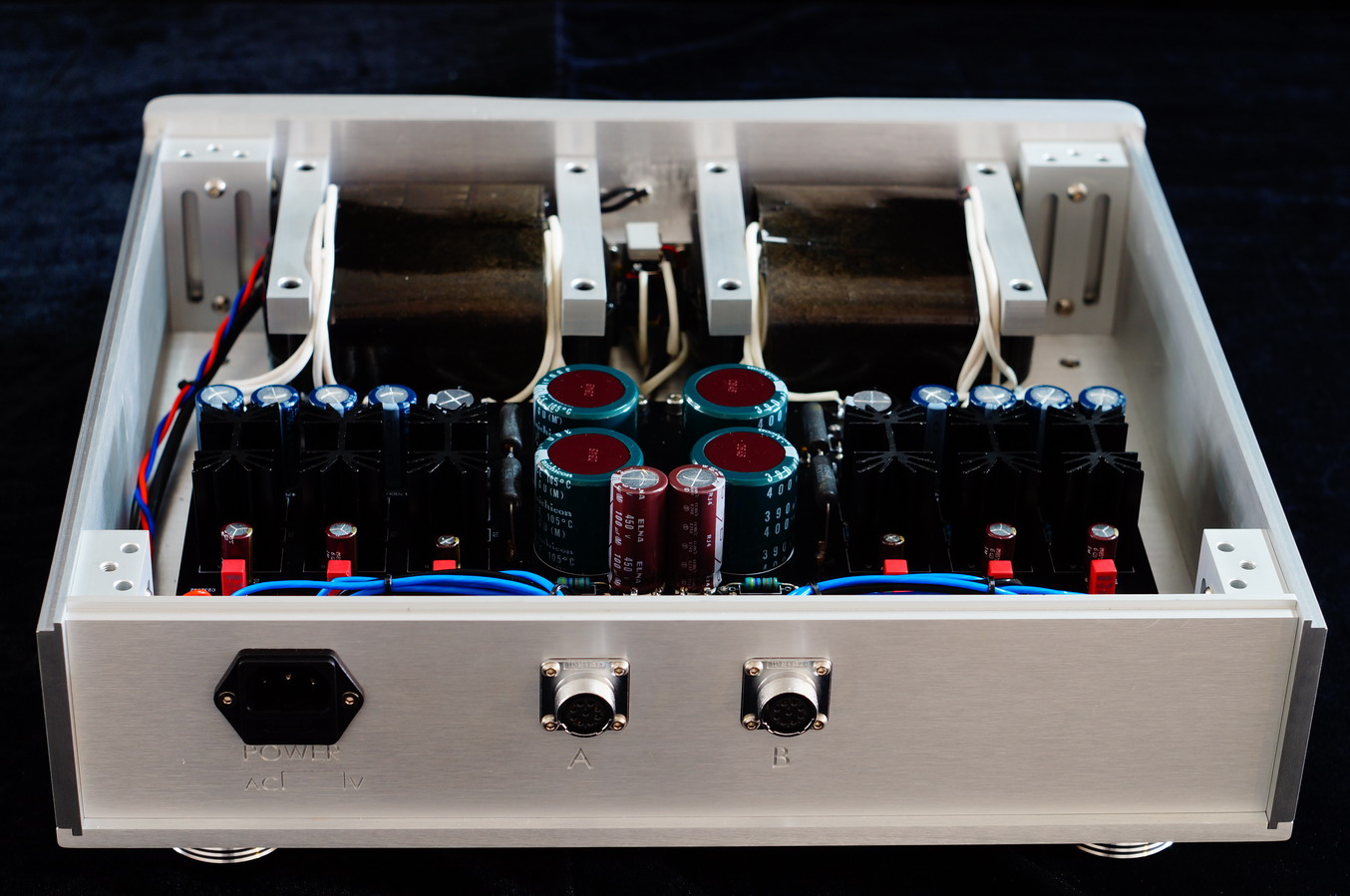

Power consumption

30 watts

Dimensions (W * D * H) 356W*343D*103H*(mm) & 356W*343D*138H*(mm)
Weight 41 Kg shipping weight

drive- https://amanero.com/drivers.htm

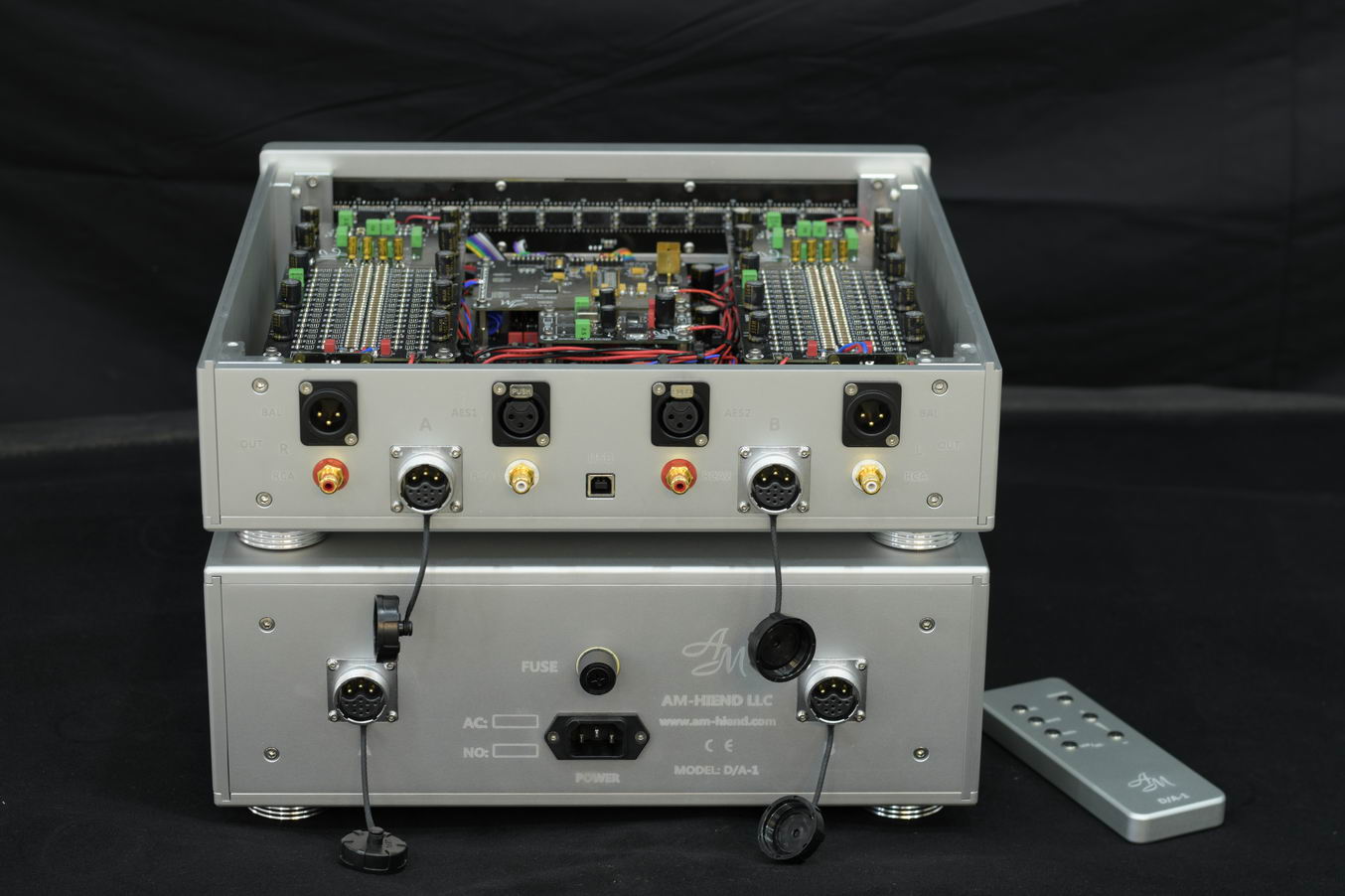

Audio Music DAC/1

Decoder design features:

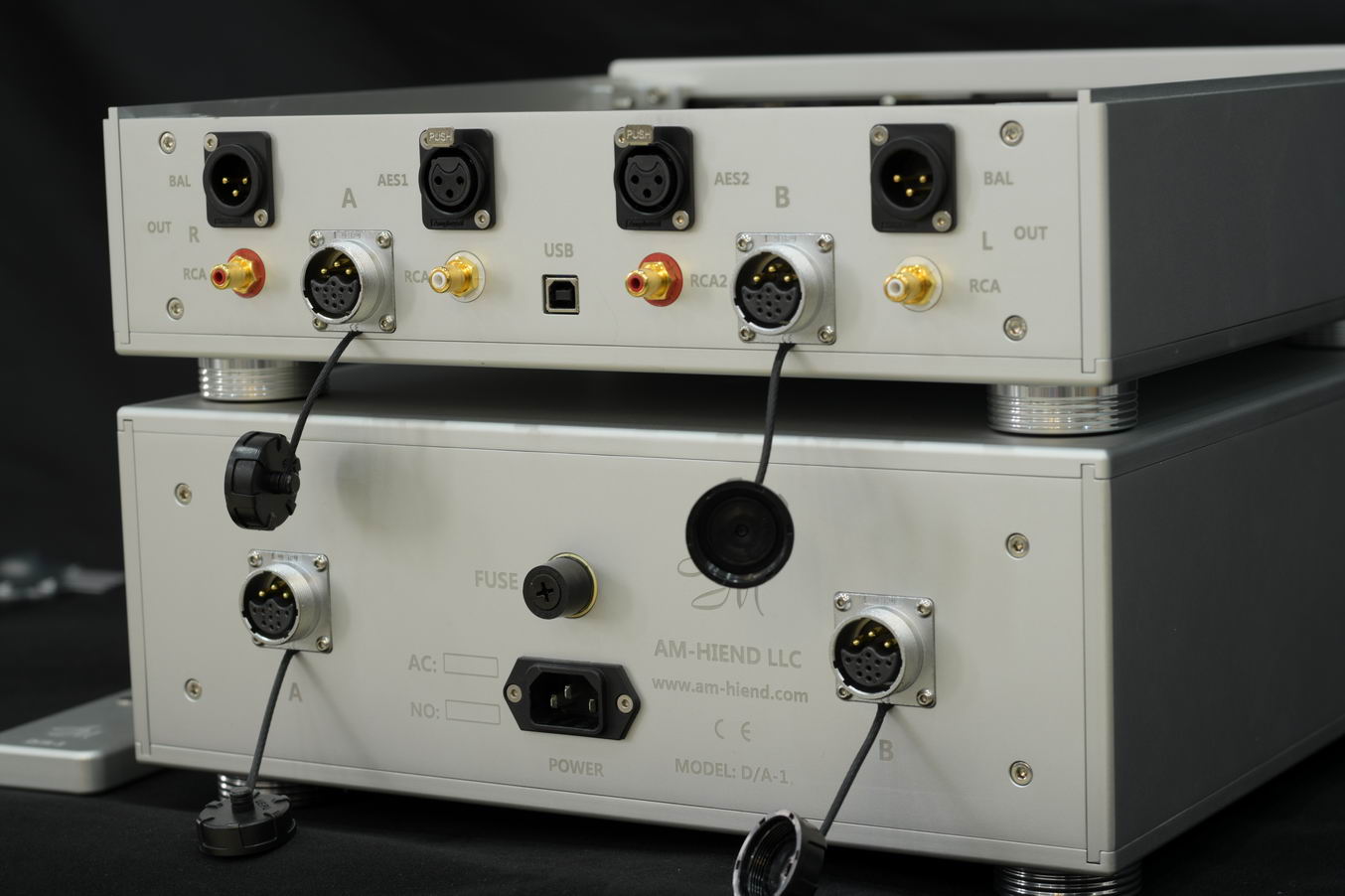

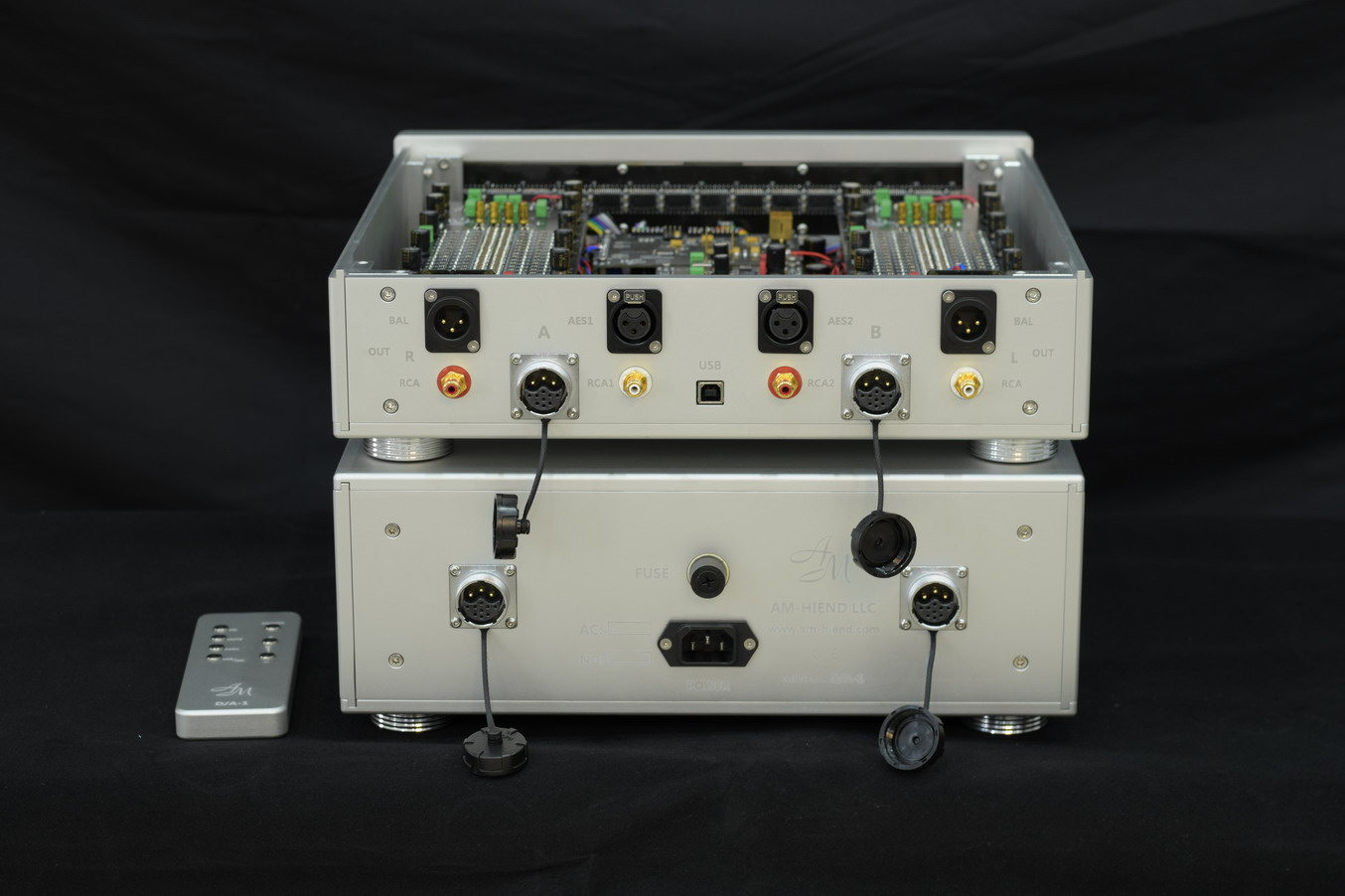

2 groups of coaxial input 2 groups of AES input
1 group of USB input

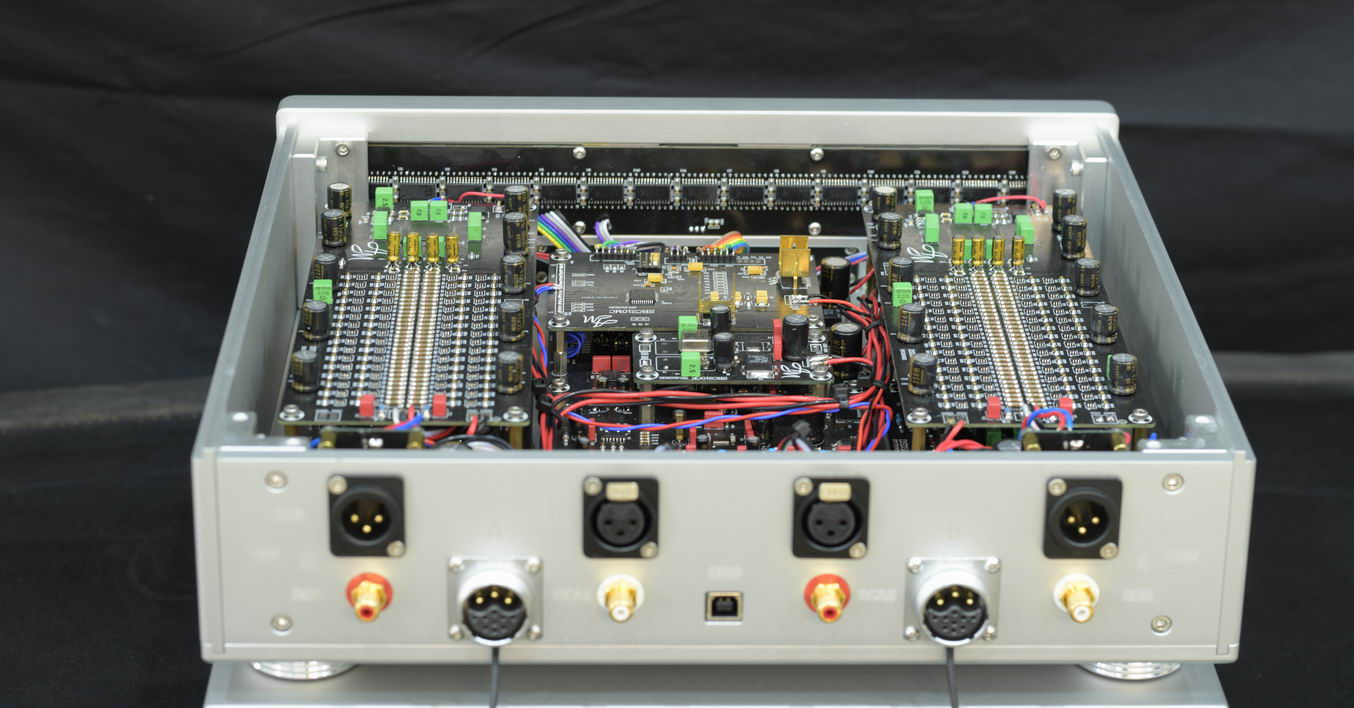

Output BAL RCA

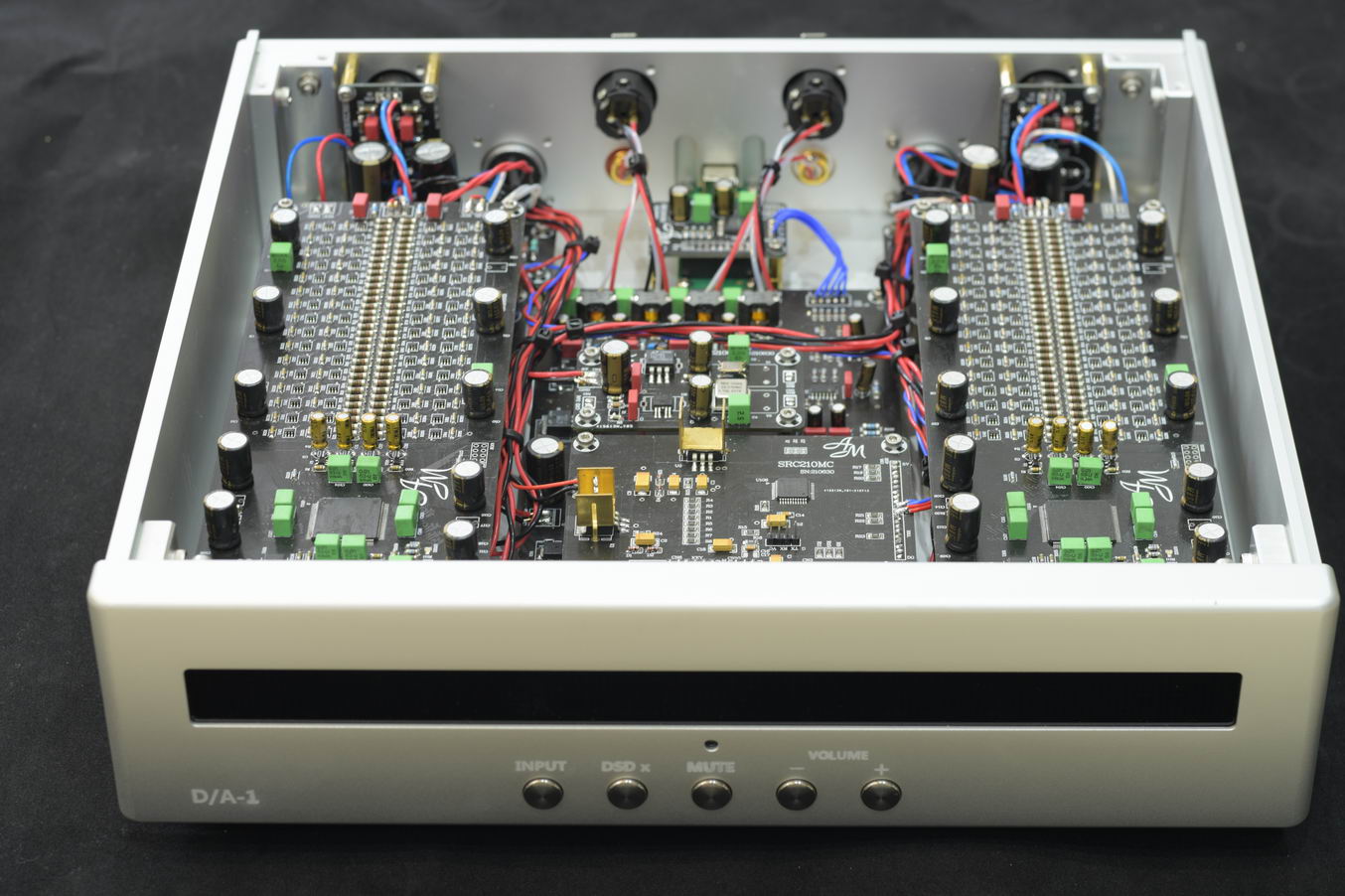

FPGA+resistor 4 pcs of silver digital transfomers silver connection wire
* Fully Balanced design down to the conversion point.
* Dynamically configurable between a discrete native DSD, or discrete native PCM DAC.
*The DAC has two modes:a multibit PCM mode and a massive parallel single-bit discrete DSD mode
* Based off a discrete ladder DAC design far beyond the performance of a basic R2R architecture.
* Control and display and DAC share a clock, which is more accurateEach DAC module is individually shielded and thermally bonded for a stringent temperature control.
* Multiple DACs per channel for increased performance and lower output impedance.
* Each DAC module is individually tested and then hand-matched with our rigorous automated measurement system.

The Premier DAC
Supported Formats (Input dependent) 44.1kHz to 768kHz PCM up to 32 bits
2xDSD, 4xDSD, 8xDSD
Supports DSD via DoP on all inputs
Digital Inputs 4x input

XLR Analog Outputs 3.57Vrms Maximum
150 Balanced
Galvanically isolated
Volume Control 0.5dB steps (Range 0 - 100).
When the volume shows 99, then it does not go through DAC volume control
